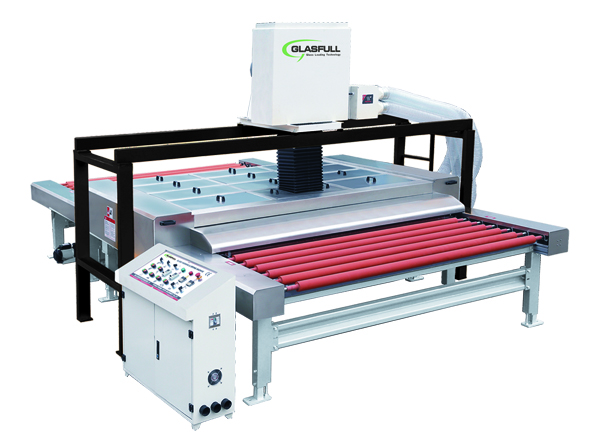

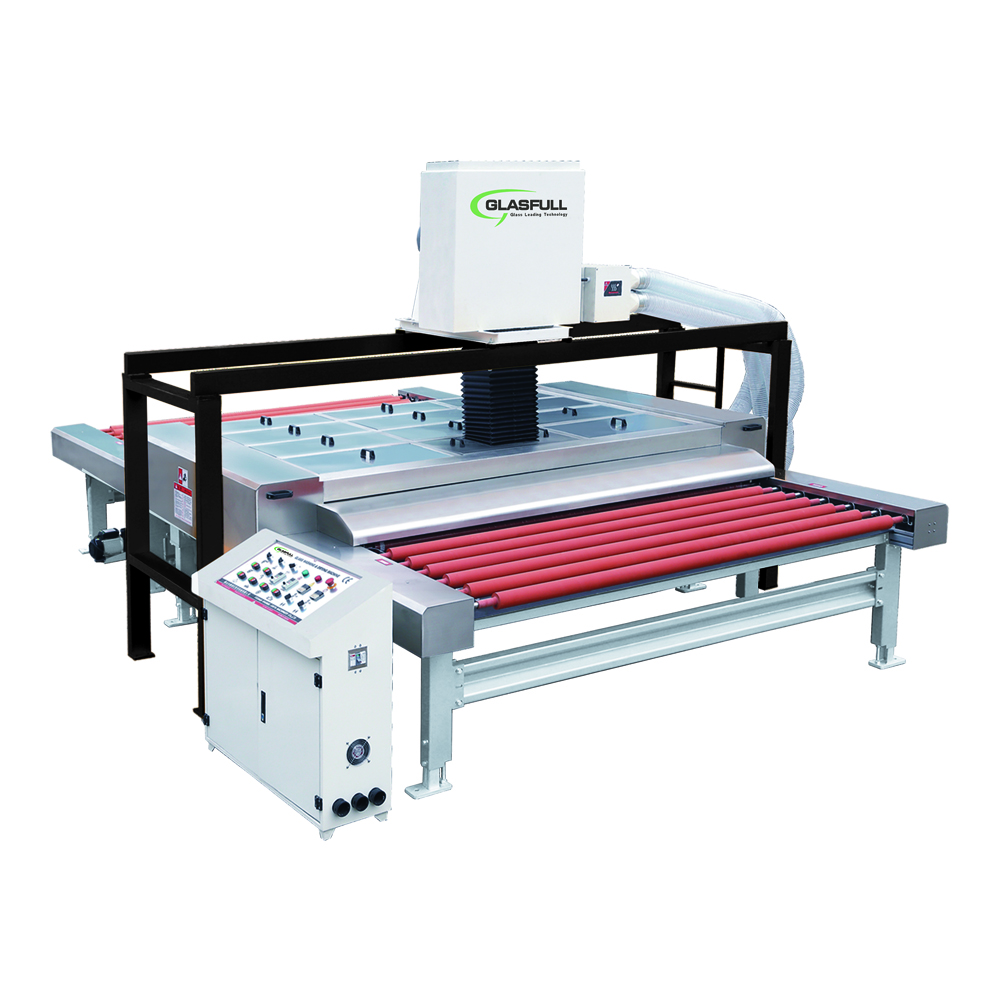

GM-WXHorizontal Glass Washing Machine
GM-WXHorizontal Glass Washing Machine
Structure feature：
GM-WX Horizontal Glass Washing Machines Series,Suitable for cleaning and drying flat glass,Main drive includes gear drive , frequency control of motor speed and digital display.Brush roller drive of washing part is drove by upper and lower motors with separate belt,which has smooth speed and long service life.Metal plates of washing part and parts which contacts with water are made of stainless steel. Three pairs of brushes (150mm)deployment.(Low-E Glass:The upper brushes deploy two hard brushes which can make cylinder rise up and one soft brush, which can wash low-e glass, ordinary reflective glass and sunshine reflective glass. When washing reflective glass, two hard brushes can make cylinder rise up to avoid damaging surface of reflective glass).GWX2500C type upper brushes can be lift to 350mm. GM-LX2000 is a kind of vertical type washing machine, suitable connect with vertical edging or vertical drilling machines.
GM-WXHorizontal Glass Washing Machine
 |
 |
 |
| 斜齒傳動 | 風刀系統 | 預噴淋 |

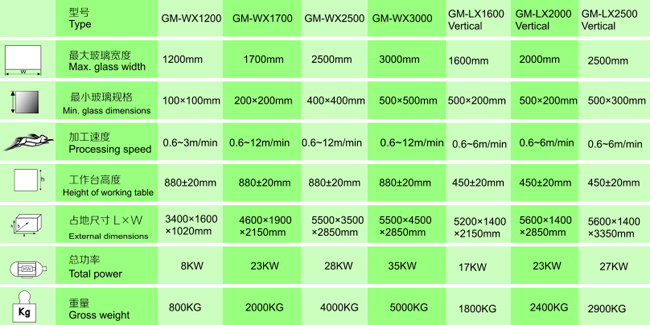

Technial parameters
