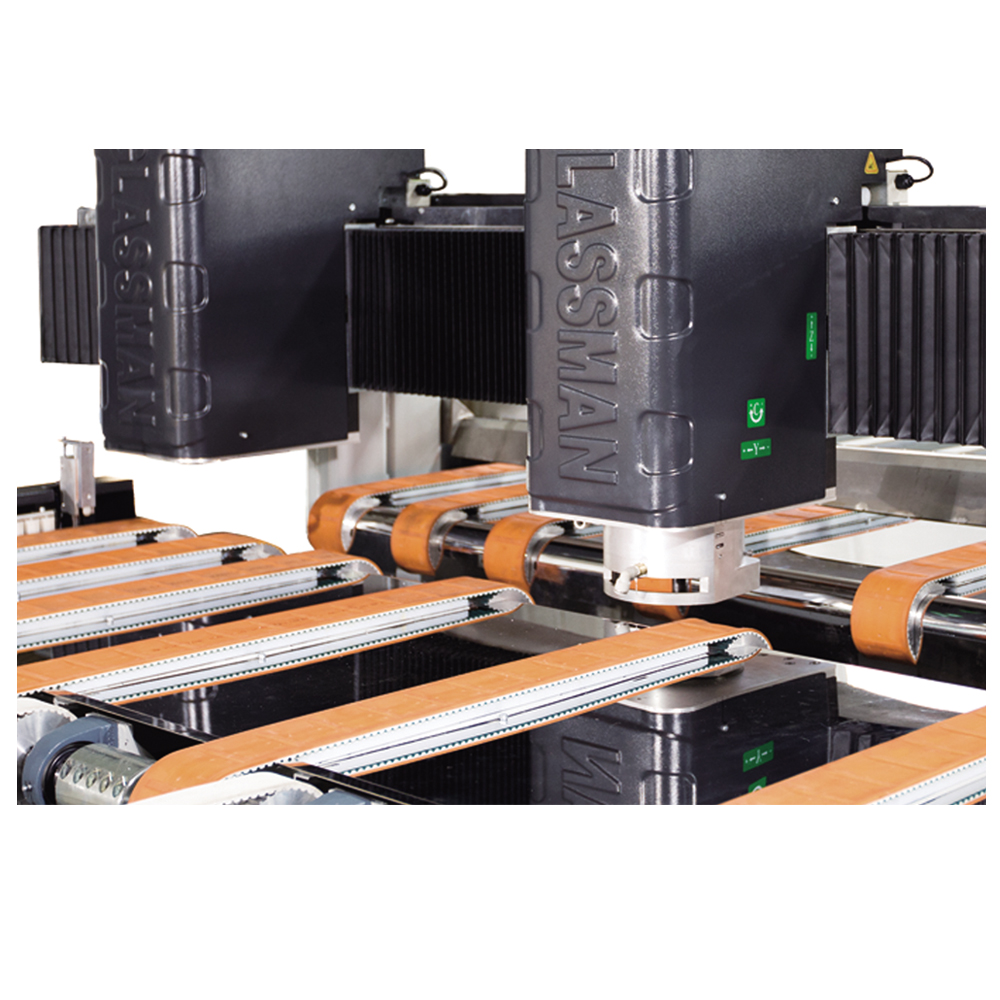

GM-BWZM-2530 Super Arrising Machine
GM-BWZM-2530 Super Arrising Machine
Glass automatic horizontal four sides seaming line; with Automatic loading table + Automatic Horizontal four sides edger + High speed washing machina + Automatic unloading tabl Glassman automatic horizontal four sides seaming line is one professional processing equipment for rectangular glass chamfaring,and bottom edging with corner cutting ,especially suitable for architectural glass, insulating glass for windows & doors. It can be composed to one automatic processing line with automatic loading machine, washing machine and automatic unloading machine,which is the best choice as the high process precision and efficiency
Automation : with human-computer interface. PLC control system, 7 spindles servo motor control system, linkage movement of 4-shaft ,automatic identifying glass size and thickness;
High efficiency :processing speed up to 25 meter/min, different sizes and thickness of glass loaded continuously WithOUt manually adjusting and waiting Convey belts With vacuum sucking: prevent from scratches and press marks, solved grinding problems of Low-E glass, improve the processing speed and reduce the processing cost.
New structures: new structures of timing belts with vacuum sucking to extend the working life and with new filter system to drain water automatically
More convenient maintenance and repairmen, reduce the break time of the machine.
 |
 |
| Safety corner cut | Vacuum pump |

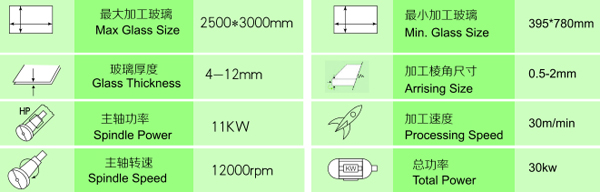

Technial parameters
